Controlling the tippler


Why bother with an Arduino Uno when there are ready made products to control our model railways? Well, the challenge of doing it for yourself, the cost, (many components are available very cheaply), but most important of all the ability to identify and build a control system for my railway were, for me, the three main reasons. I was able to buy a complete starter kit including the Arduino Uno for about £18. The Arduino Uno, (I bought one recently for £3.99), is an open source electronics platform. The program to control it is a free download and there is a great deal of support on the Arduino web site, ( ) and on YouTube. Also, additional support was available from a group called the Micro Electronics Railway Group (MERG), of which I am a member.

I started with simple operations; such as switching on a light, creating a traffic light system and switching on and off an electric motor to gain an understanding of the programming structure. After that it became a bit of a ‘dark art’ as far as the electronics and programming were concerned. I had no idea really of how a stepper motor differed from a servo or an ordinary electric motor and, how it might be controlled from the Arduino board. So here is a record my journey.

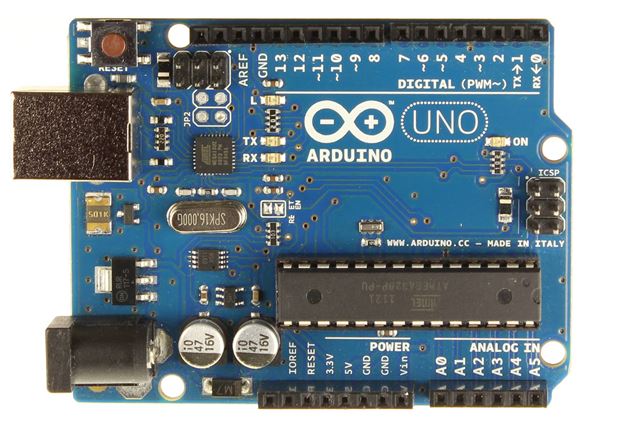

The Arduino Uno R3 board
Let’s start with the board itself. It’s a small collection of input and output sockets of different sorts, voltage supplies, and a storage area for the program that you have to write to in order to make use of a variety of peripherals. It has a USB socket to connect it to a computer and an external power supply socket which allows it to be run independently of a computer. From the diagram shown below you will see the groups of sockets it has. a group called Power, a group called Analog IN and a large Digital output group of different kinds.

The Arduino Software
As previously mentioned, working with the Arduino board requires you to obtain a free downloadable program which is straight forward to use but it’s necessary for you to know a little of the programming language known as ‘C’. The Arduino program provides a simple window into which you type various bits of code that can then be tested for mistakes and once corrected can be uploaded to the Arduino. The programming process works as follows:

First you have to name and give a value to any constants that you are going to use.

e.g. int button_1 = 2  (the int part identifies it as a number or integer)

Next you set up the necessary functions that use those variables from the previous section and declare which of them is an input or output.

e.g. pinMode(button_1, INPUT);     (the semi colon at the end is important)

Finally you build up a program in a loop that has a defined structure to control the Arduino board. It calls on procedures to control lights, motors, servos, steppers etc. in specific ways.

  Next I joined MERG, The Model Electronic Railway group, to get extra support and advice.

A fuller explanation of my journey is to be had here as a pdf file downloadable by clicking Here.

Here is the outcome on its first trial:-


and here it is with a full load of coal in working condition. The coal gets in everywhere and under all the wrong places, so regular cleaning is necessary to keep things running smoothly


Shunting needs to be improved but the driver lacks the experience as yet!


Here is another view of the tippler in action. This time from the track bed.
